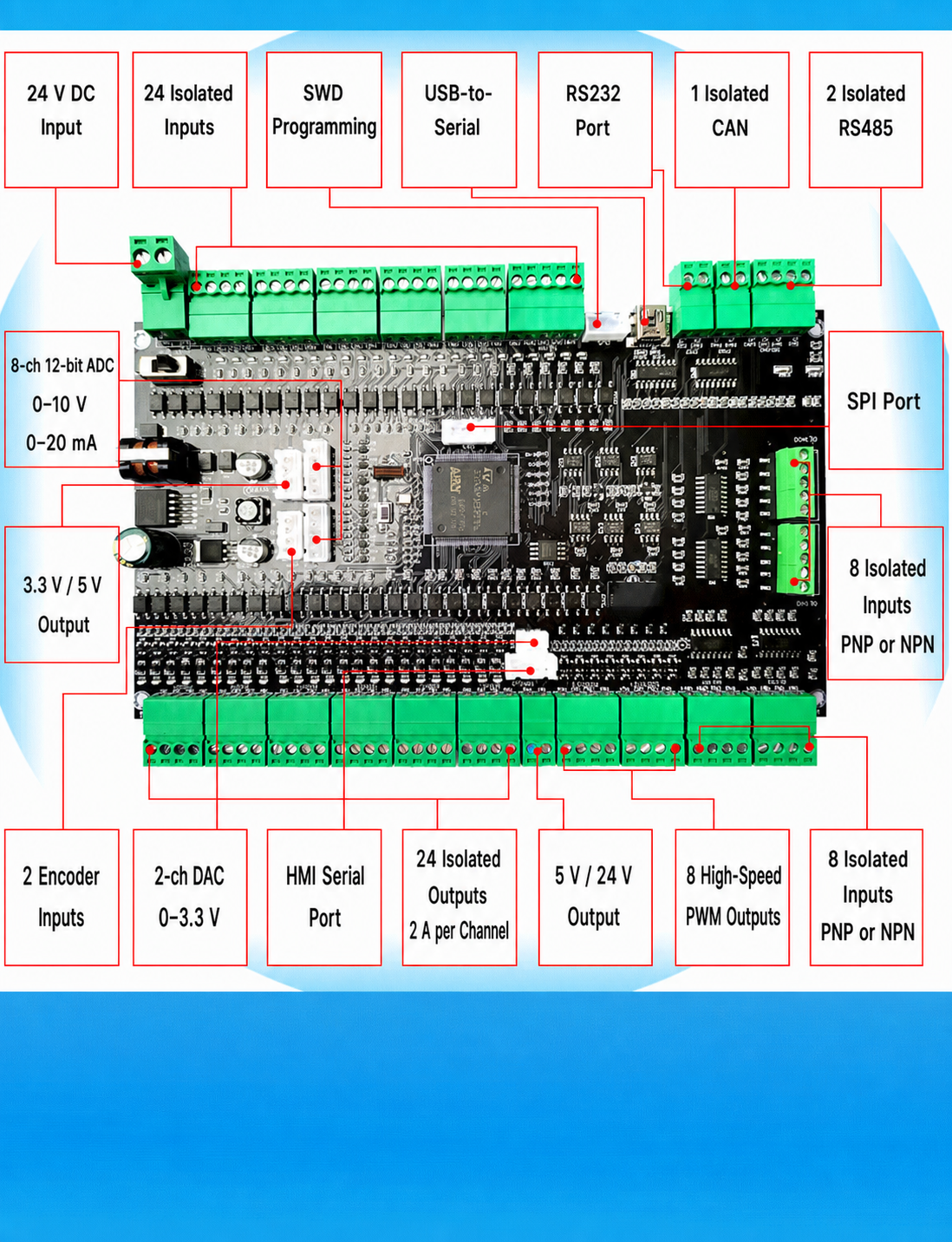

STM32F103ZET6 Industrial Control Board

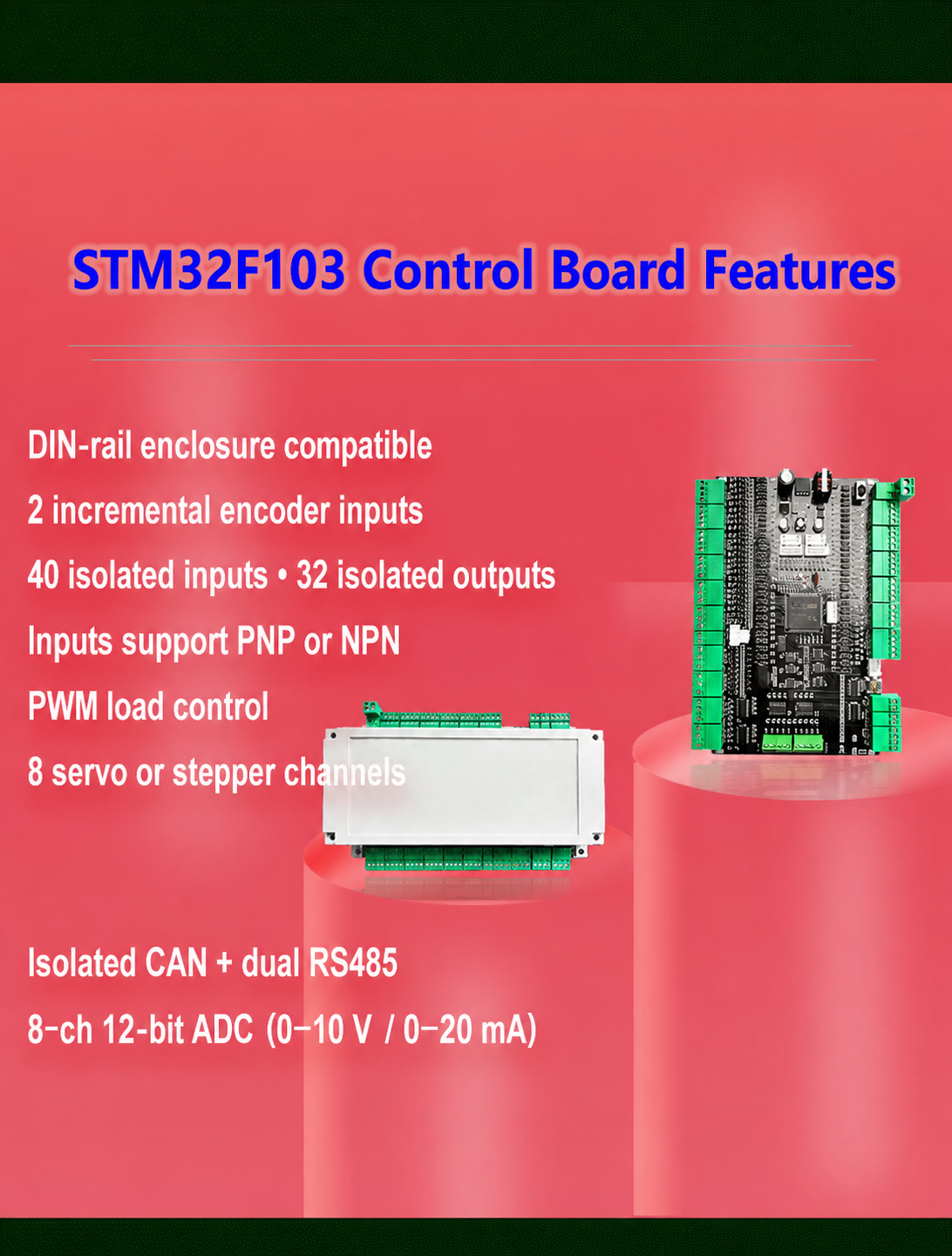

This compact industrial controller combines an STM32F103ZET6 Cortex-M3 MCU with isolated field I/O, multiple industrial communication interfaces and flexible analog and motion-control resources. It is suitable for automation equipment, data acquisition, distributed I/O, motion control and custom machine-control projects.

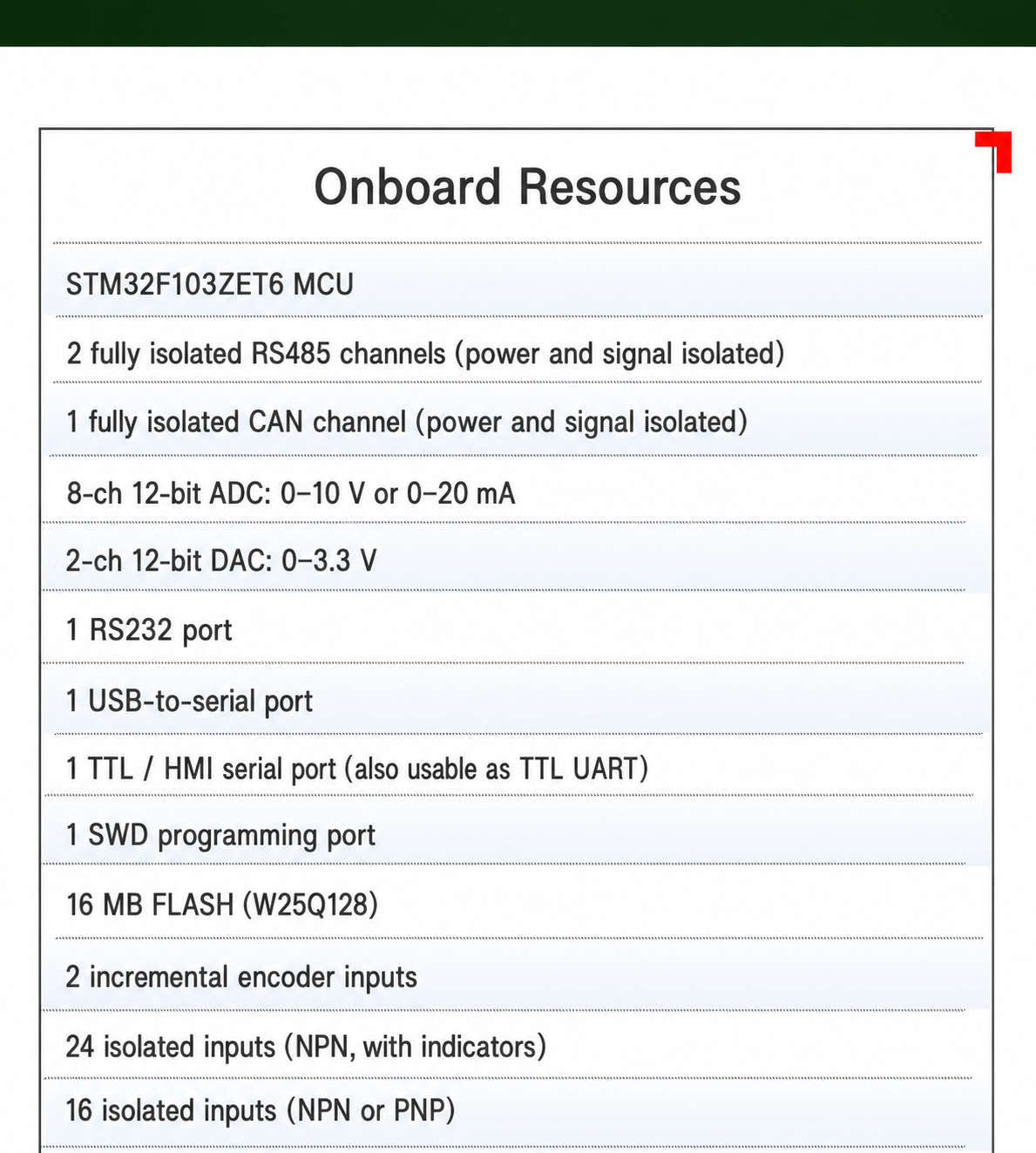

Communication Interfaces
- 2 isolated RS485 channels, with isolated signal and power
- 1 isolated CAN channel, with isolated signal and power
- 1 RS232 interface

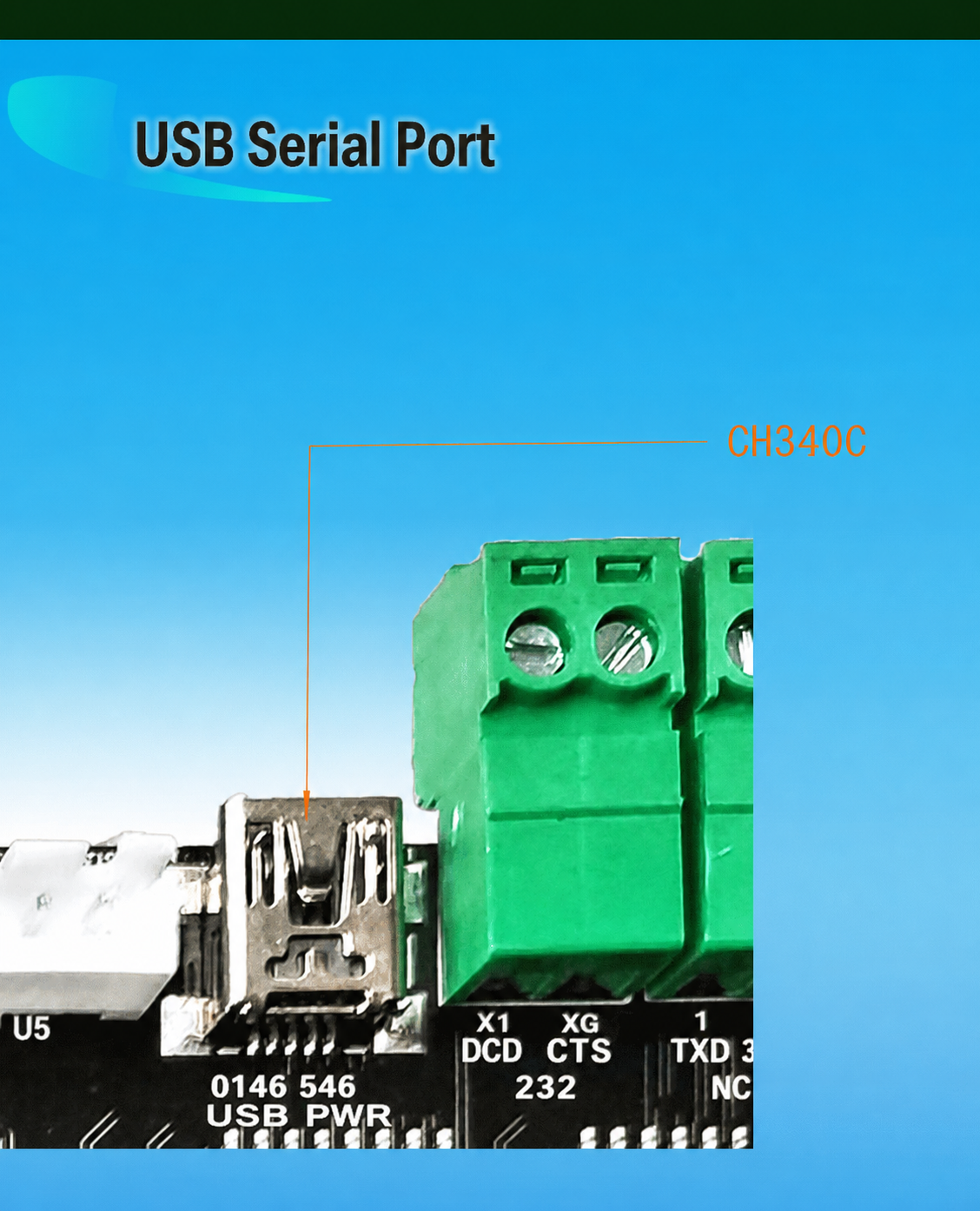

- USB-to-serial interface
- TTL serial header and SWD programming/debug interface
I/O and Analog Resources

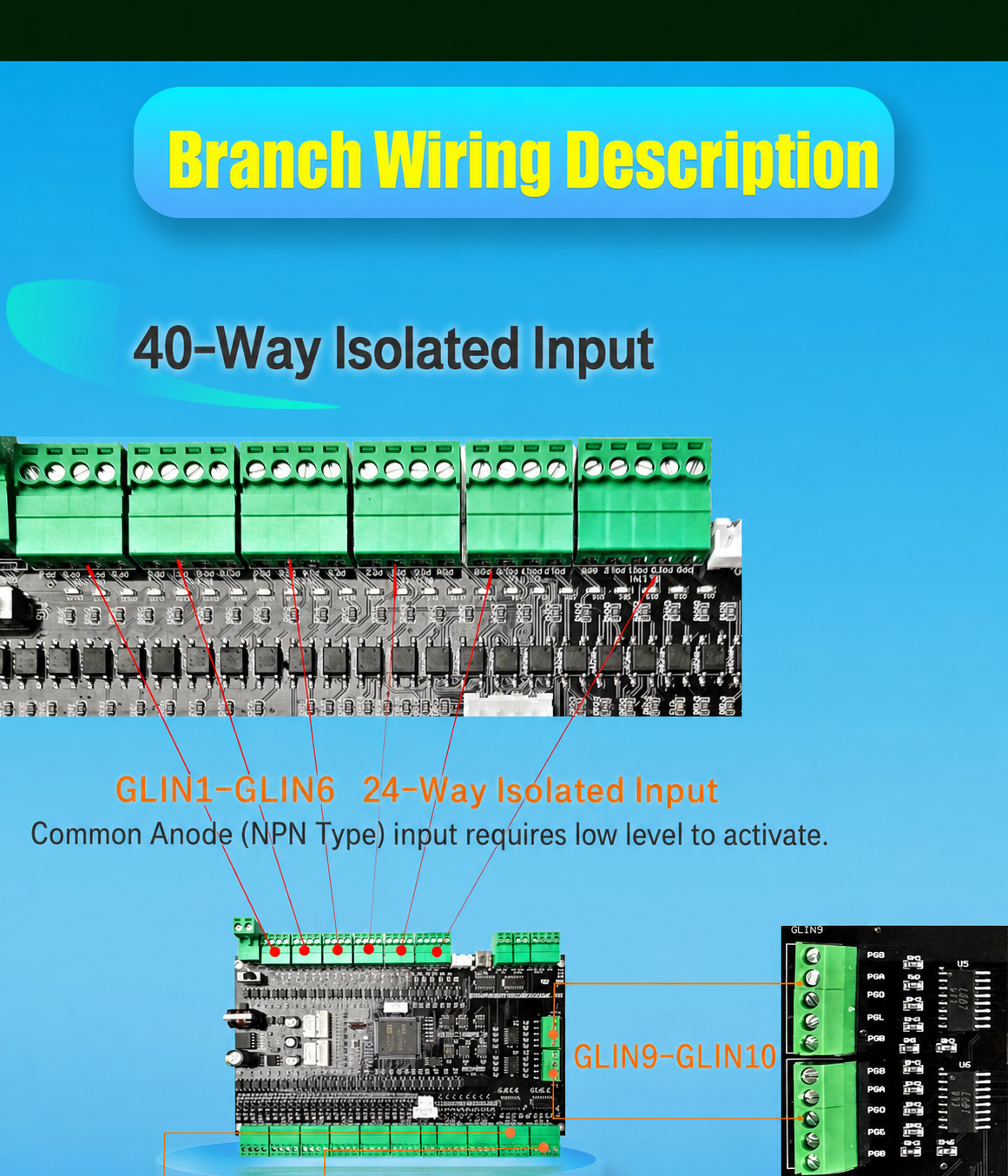

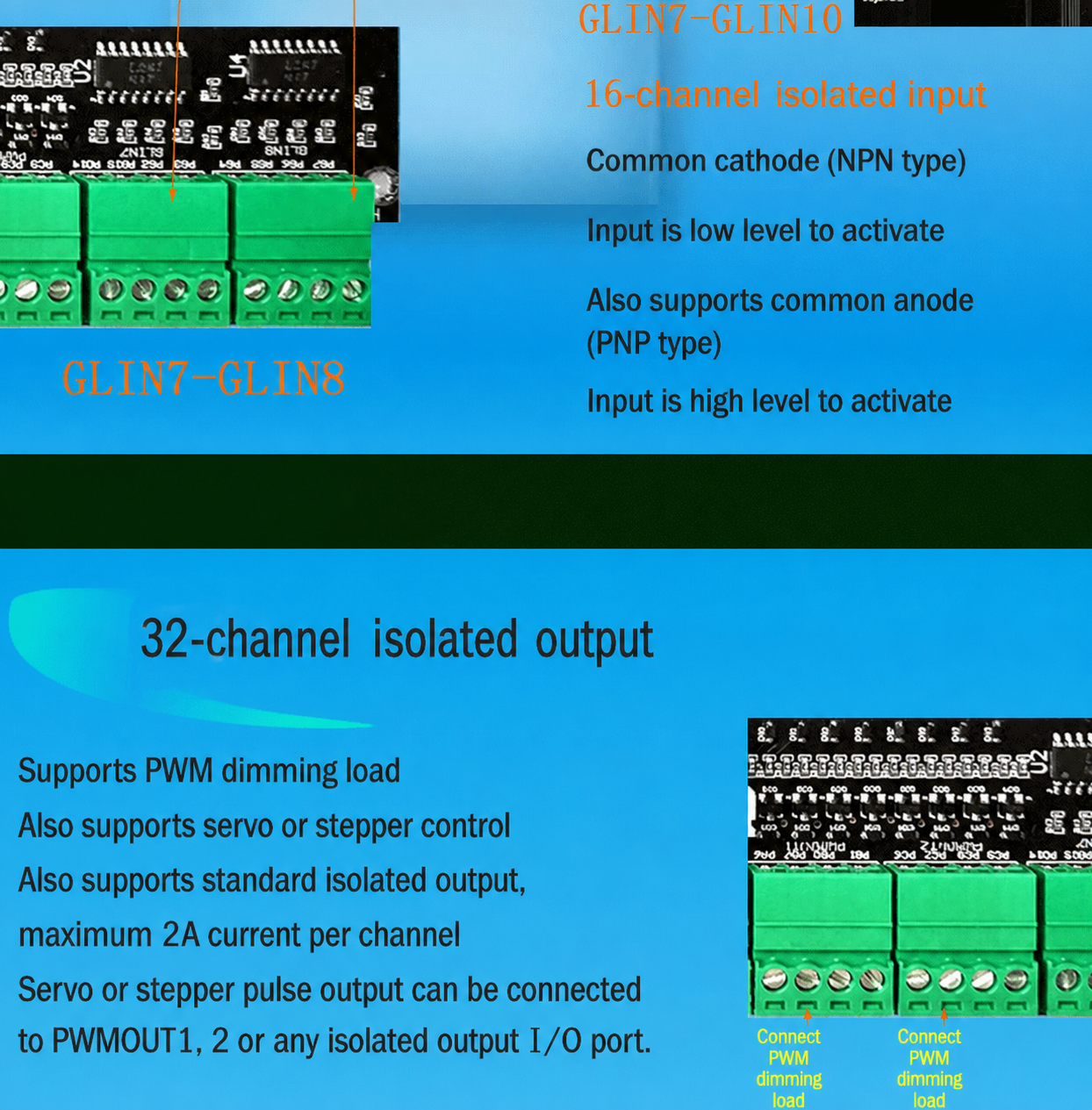

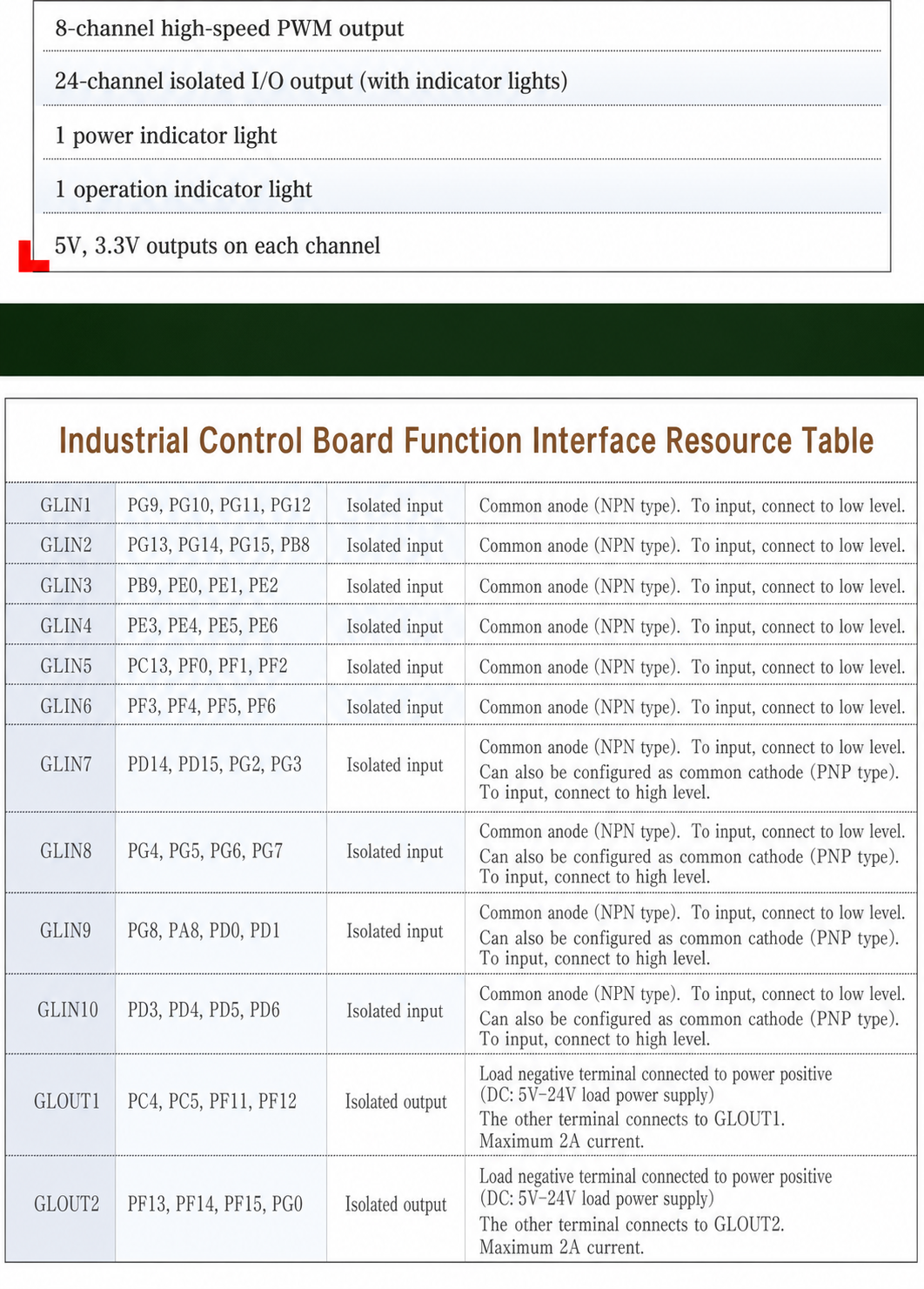

- 40 isolated digital inputs: 24 NPN inputs and 16 NPN/PNP configurable inputs

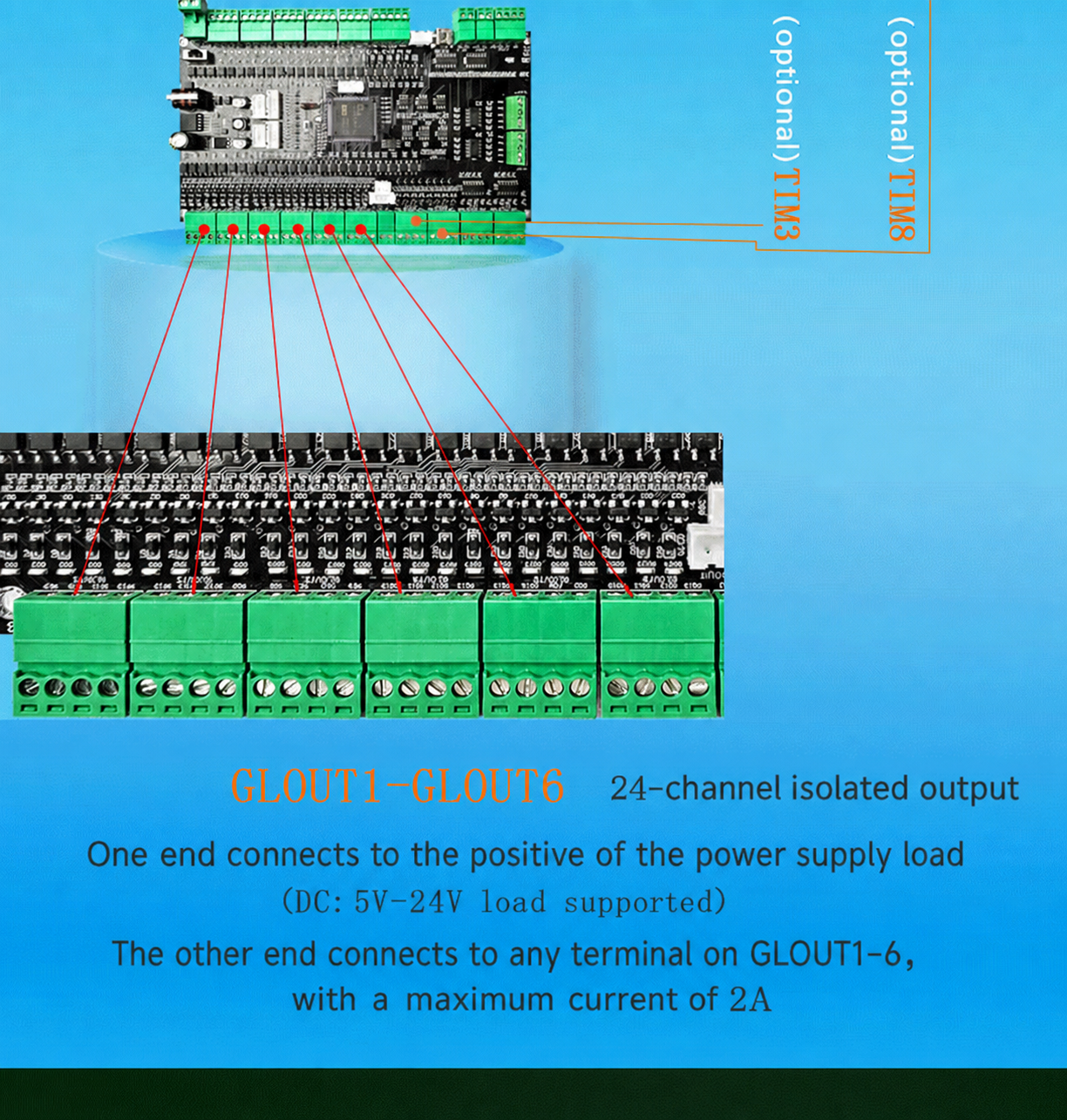

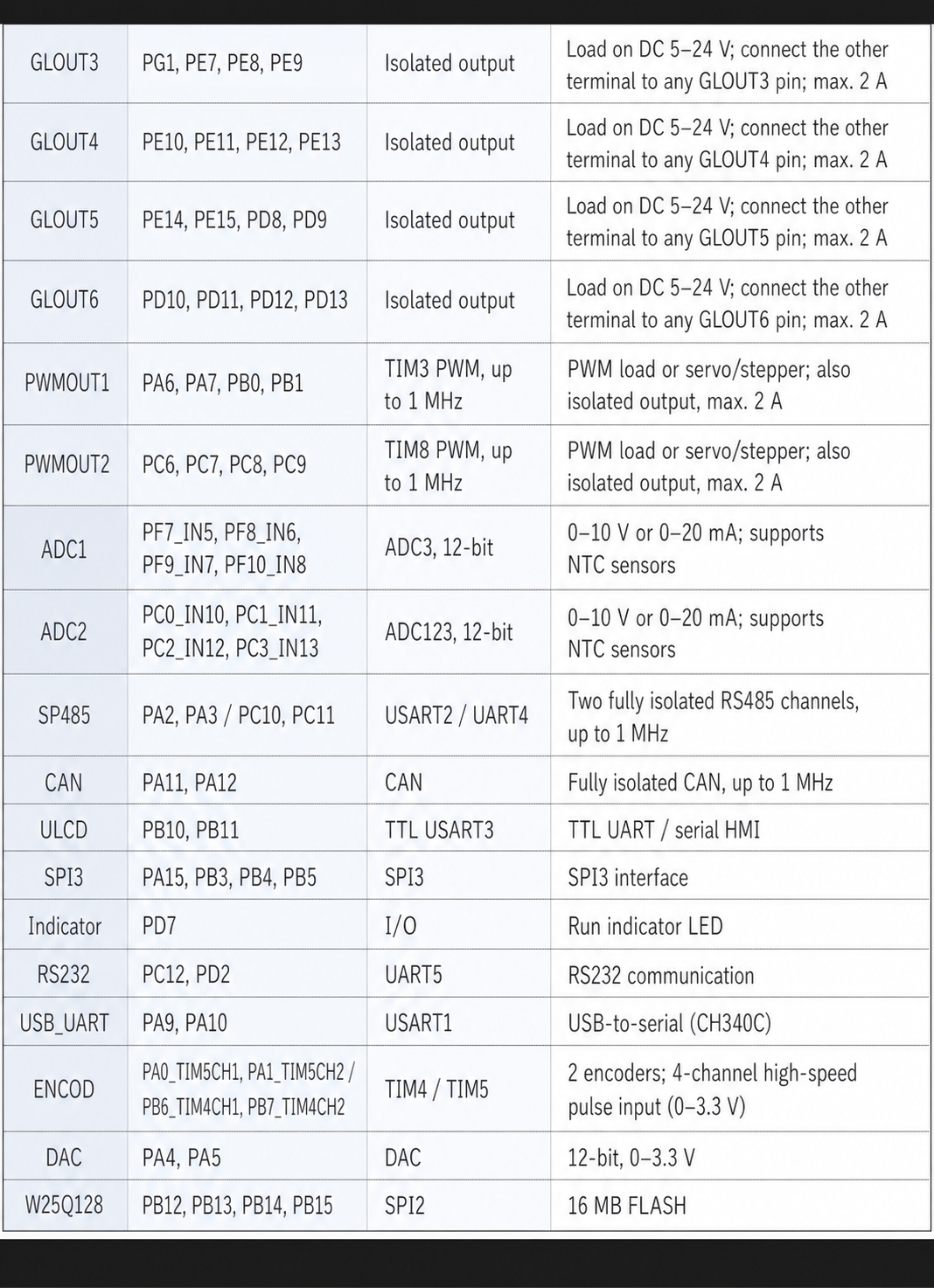

- 32 isolated digital outputs, including 8 high-speed isolated PWM outputs

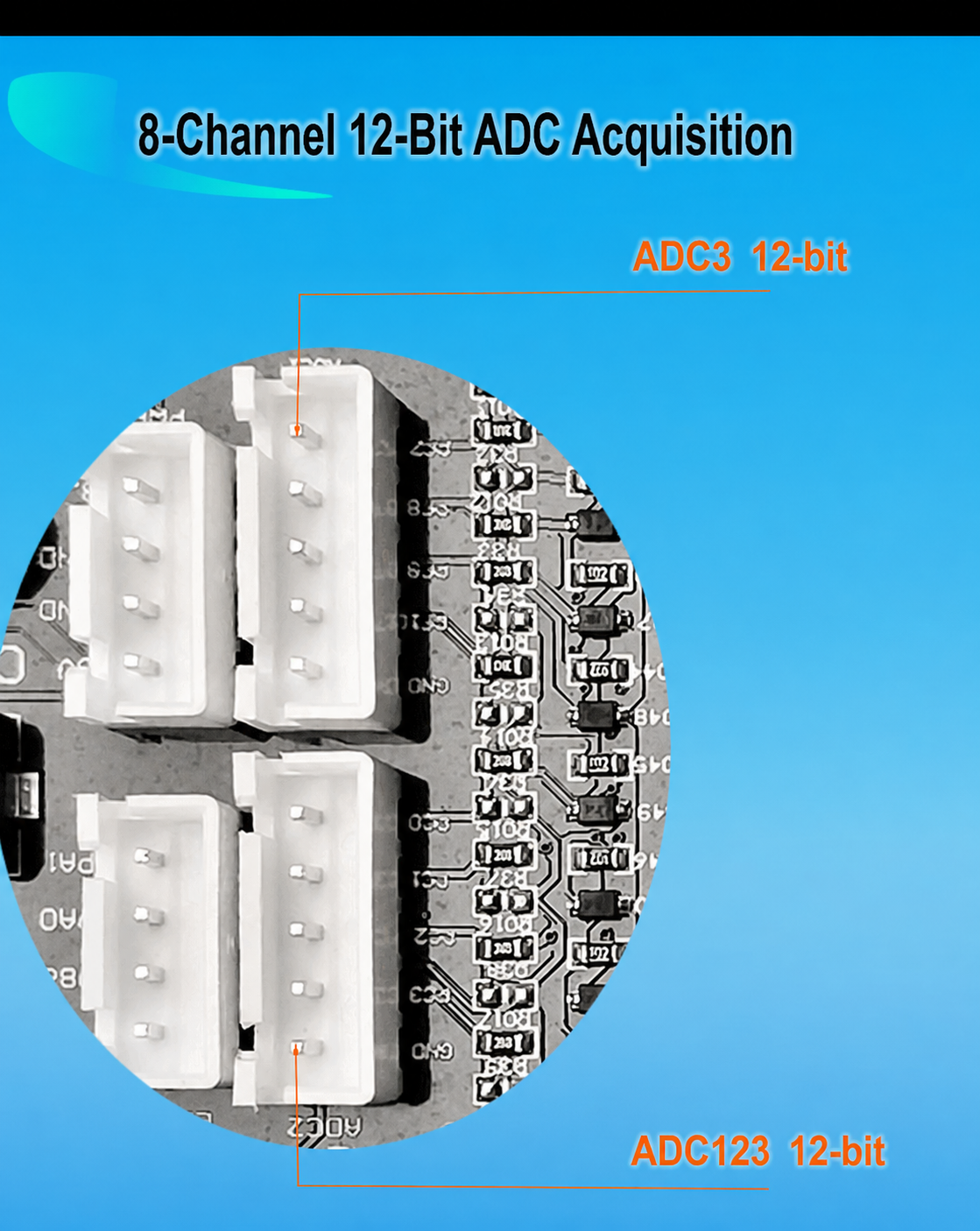

- 8-channel 12-bit ADC acquisition supporting 0–10 V and 0–20 mA signals

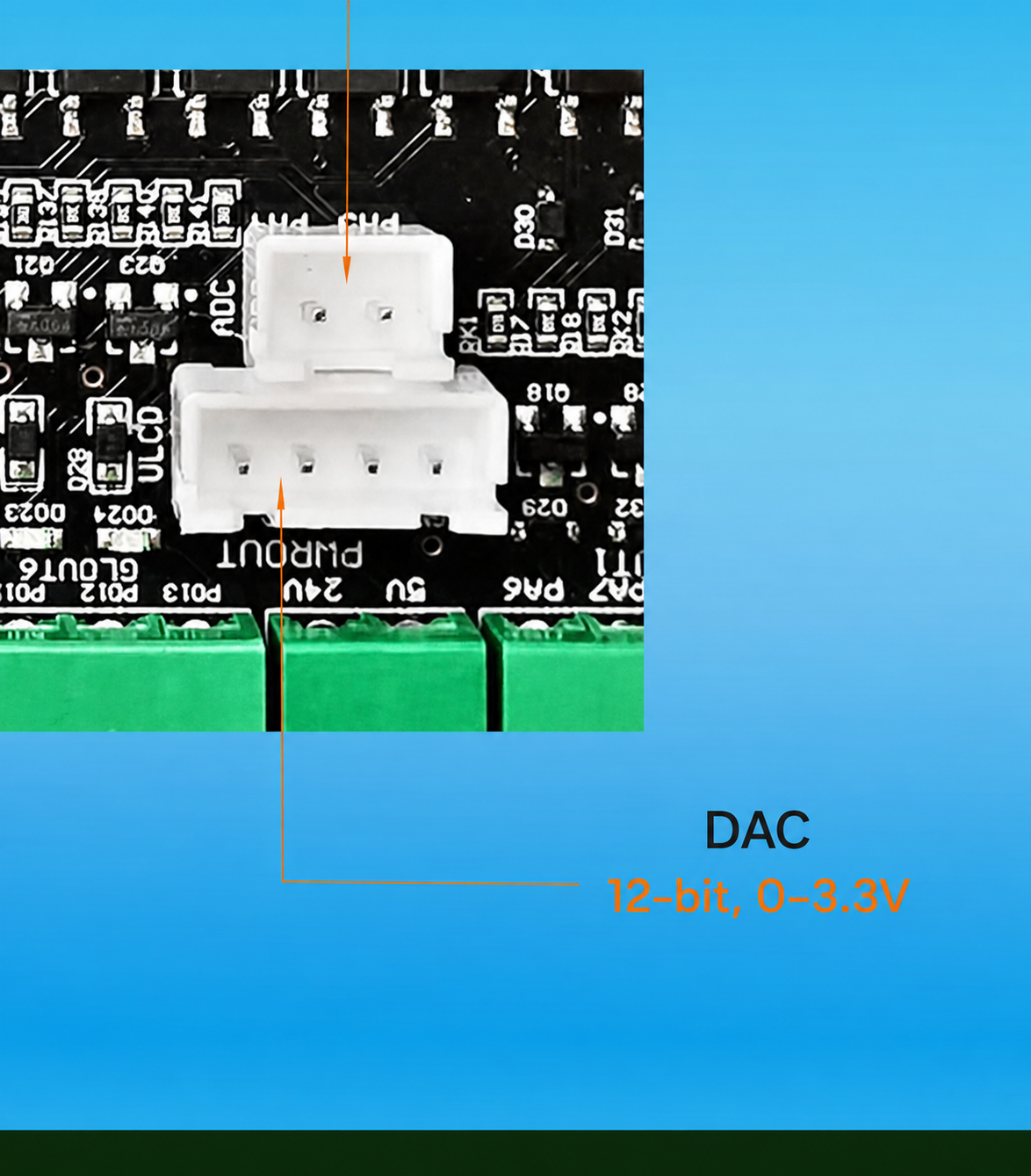

- 2-channel 12-bit DAC output, 0–3.3 V
- 2 encoder inputs
- 16 MB W25Q128 external flash

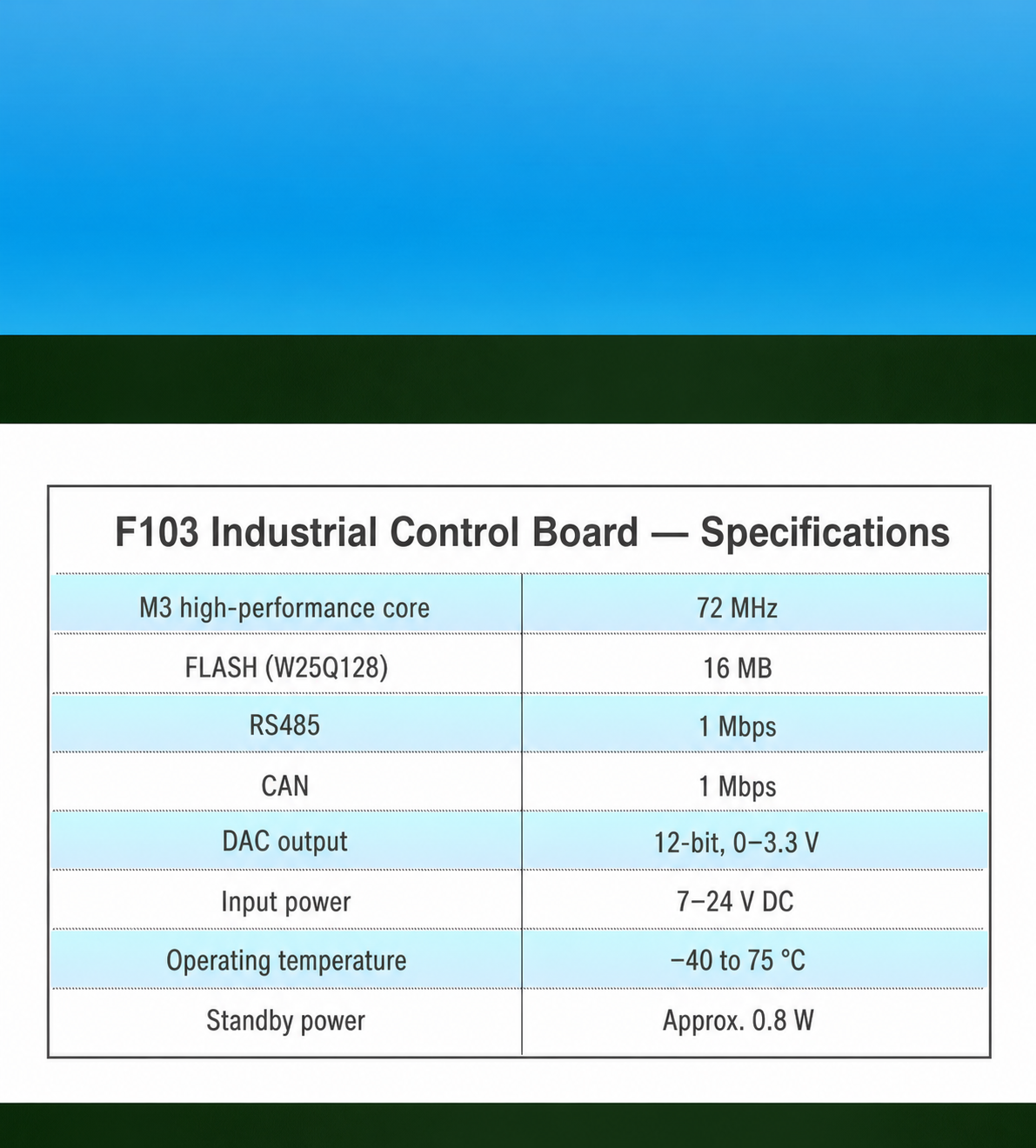

Industrial Design
- 7–24 V DC input power
- Operating temperature: −40 to 75 °C
- Approximate standby power: 0.8 W

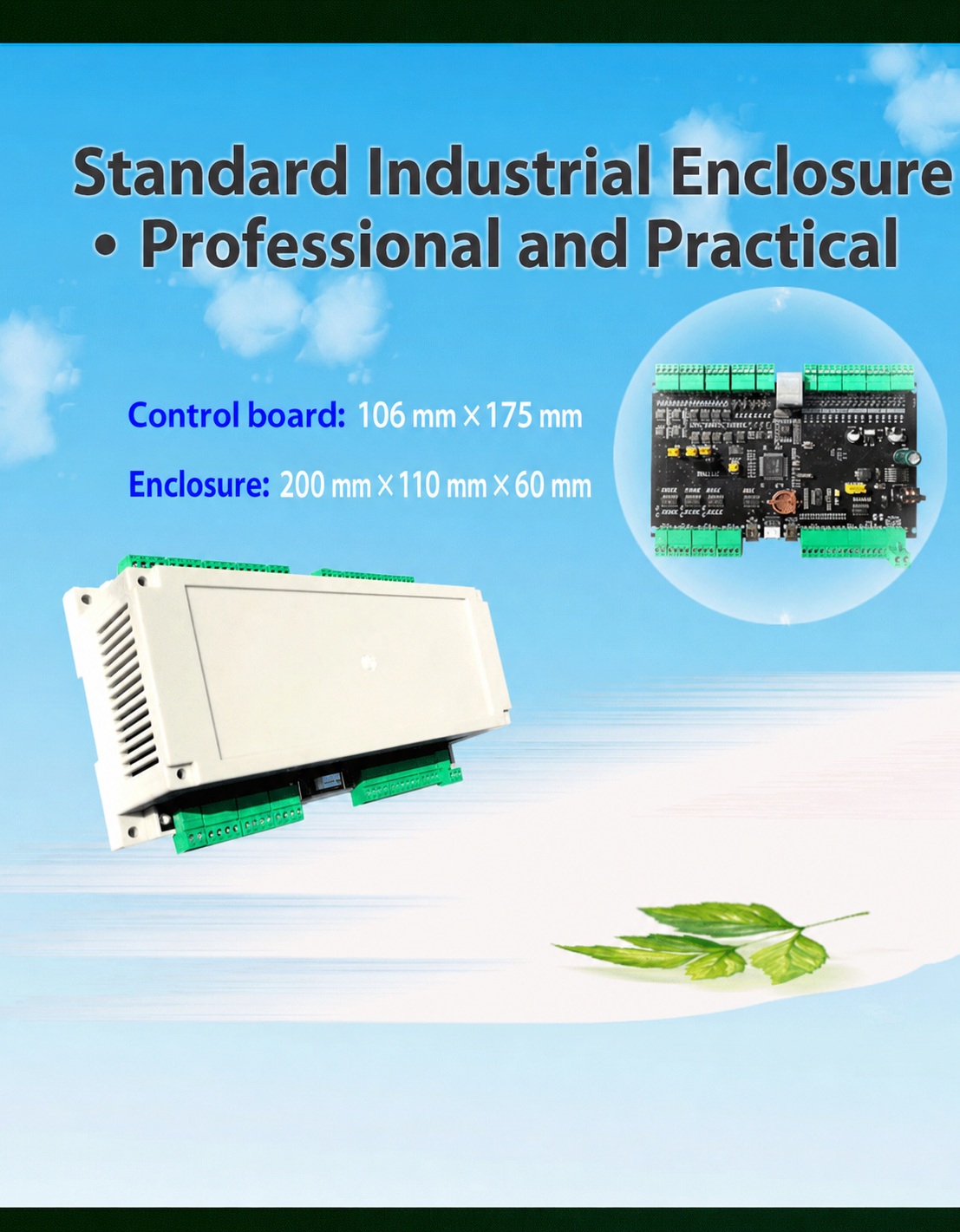

- PCB dimensions: approximately 106 × 175 mm
- Enclosure dimensions: approximately 200 × 110 × 60 mm
- Industrial enclosure suitable for control cabinets and DIN-rail installations
Typical Applications

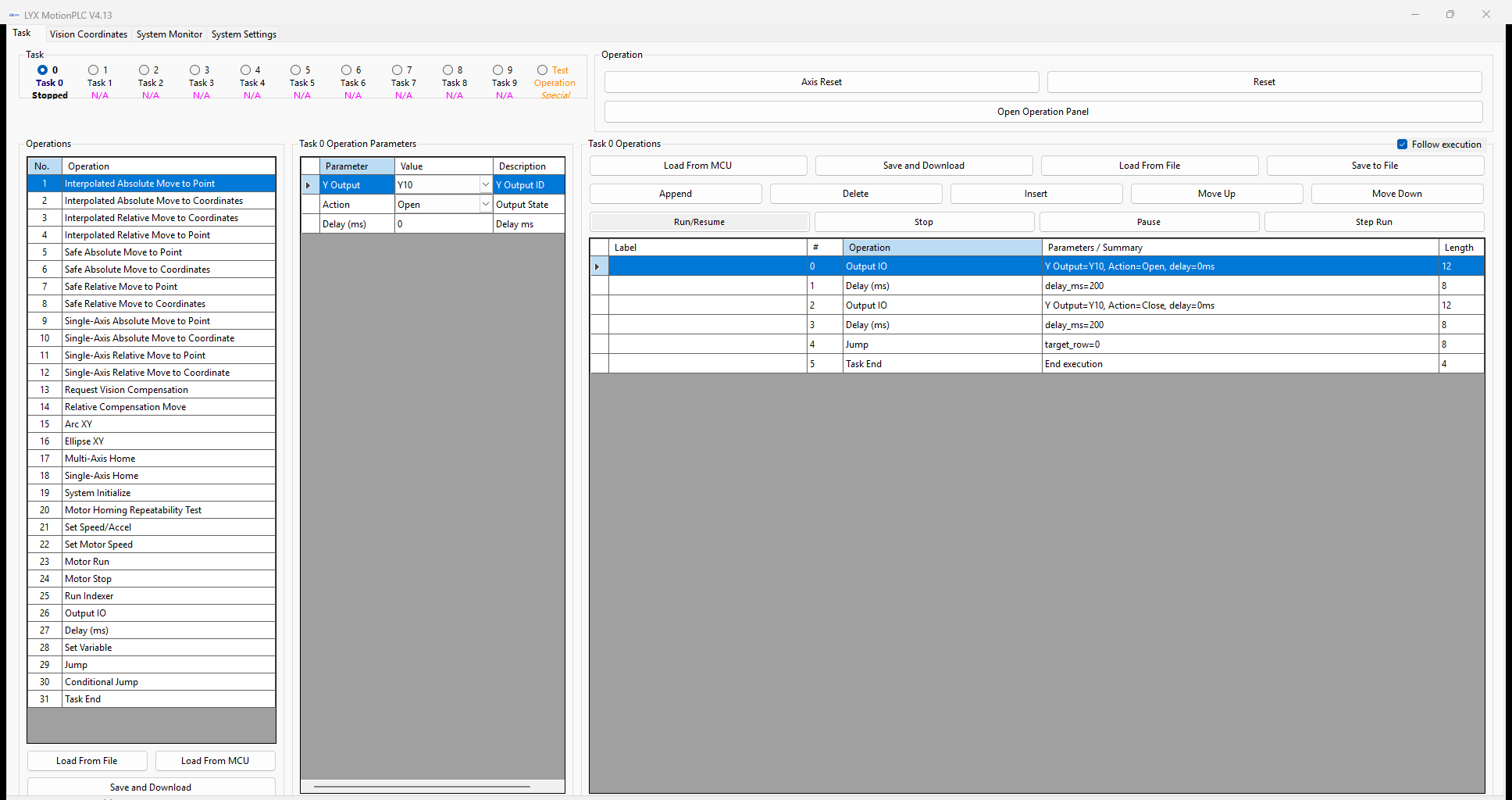

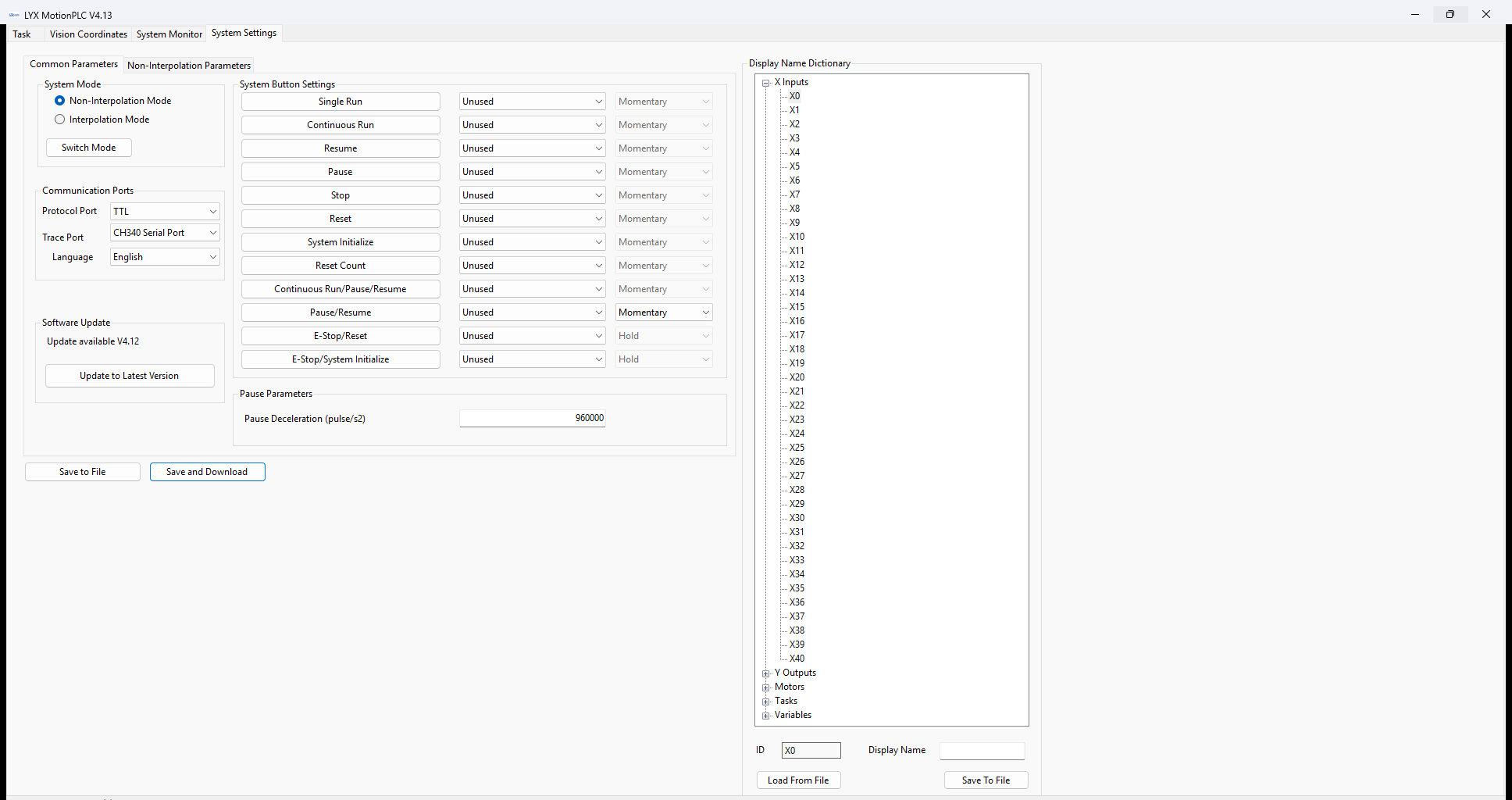

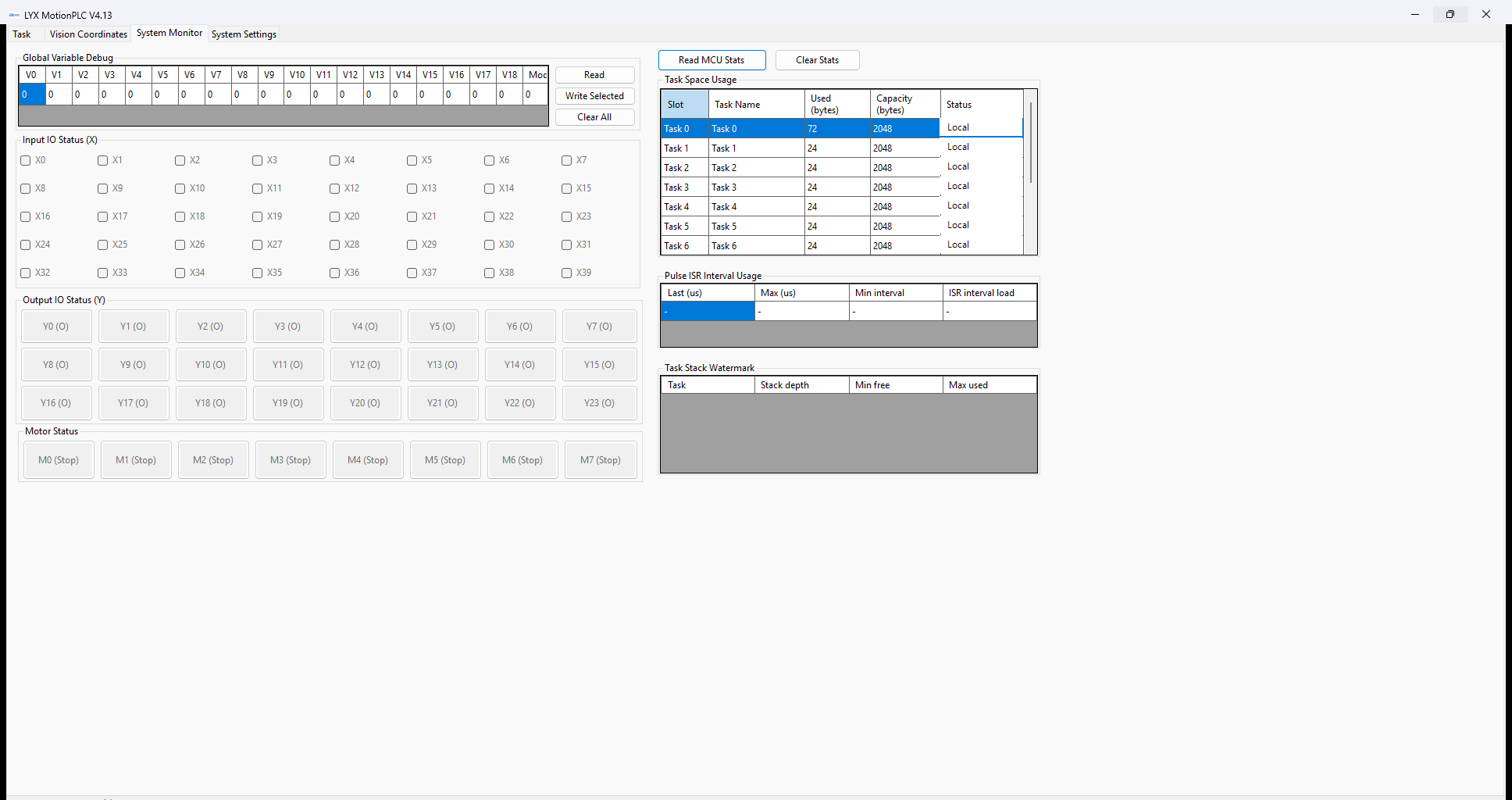

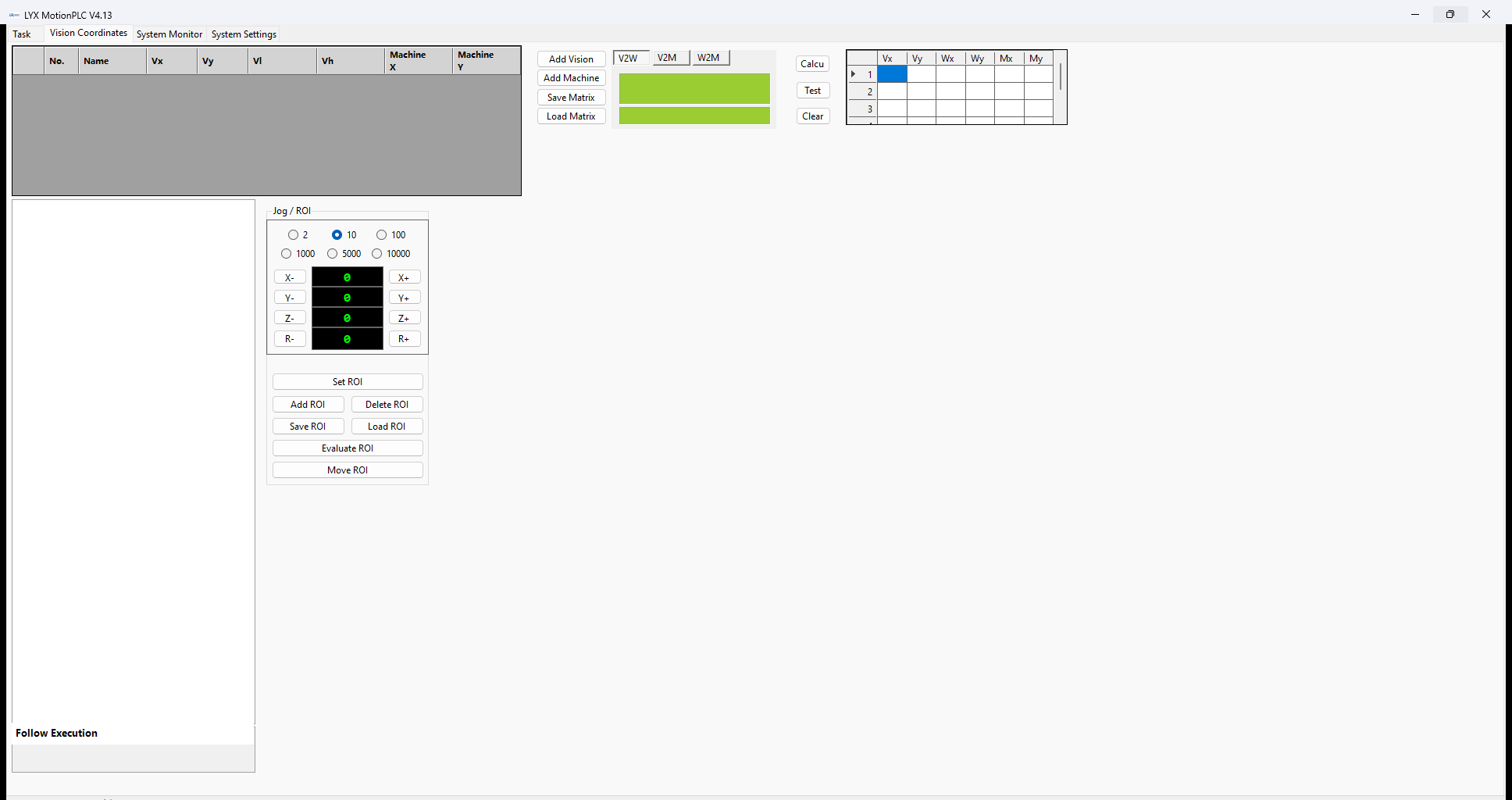

PLC-style control, production equipment, robotic workcells, remote I/O, sensor acquisition, servo and stepper control, test fixtures and customized automation systems.
Model: MCUBoard001
